Article - Diagrams as Code

A picture is worth 1000 words. So if you can create a picture using a few lines of code you have turned a few lines of code into 1000 words.

What §

“Diagrams as Code” is exactly what it sounds like: illustrated diagrams that are created using code.

Most diagrams you can draw using code fall under the umbrella of UML, the Unified Modeling Language. UML was designed to support software development, and software developers are the ones to write code. Thus UML Diagrams as code was a natural fit.

The Main Contenders §

Like most good ideas, there are a two main competing standards:

• PlantUML - Java, 2009 (uses “GraphViz”, which also supports many other, lesser used platforms)
• Mermaid - JavaScript, development started in 2014 - but most really picked up around mid-2019

Diagram types §

Graph Type	Depiction Description	PlantUML	Mermaid
Class Diagram	The types of things that can exist, how they relate, their properties, and what they can do. From UML.	✅	✅
State Diagram	The different ways in which a thing can exist, and how it transitions in between those ways. From UML.	✅	✅
Entity-Relationship Diagram	The types of types of things that can exist, their properties, and how their properties relate. NOT from UML, but used in lots of contexts.	✅	✅
Flowchart	Generic flowchart. Labeled boxes of different shapes with different kinds of labeled arrows between them.	✅	✅
Gantt	A timeline across the X-axis, with events stacked along the Y-axis positioned to fit where they take place in time. A common business/project management tool.	✅	✅
Pie Chart	Chart made of pie… Wait no.		✅
Bar Chart	Brand new (as of this writing) capability that is in beta. It’s… okay.		✅
Requirement Diagram	A view of Requirements of a system. How they relate to one another and to parts of the system. From SysML.		✅
Sequence Diagram	A specialized view showing how messages are exchanged between participants. Has a timeline about the Y axis, and multiple vertical bars distributed about the X axis representing the participants. Messages go between the participants going down the page. From UML.	✅	✅
Timing Diagram	A basic depiction of the behavior or state of an entity over time. Timeline about the X axis. The Y axis often has different modes of operation in which the subject exists over time. From UML.	✅
Use Case Diagram	The users of a system, and the part or features of the system that they care about. From UML.	✅
Activity Diagram	A specialized flow chart utilizing UML syntax. Doesn’t really do anything a regular flow chart can’t do, but includes some confusing syntax. ATTACK OUTTA NOWHERE GET LOST ACTIVITY DIAGRAMS.	✅
JSON View	An Entity-Relationship diagram built using a JSON file, to depict the structure of they keys of that JSON file.	✅

That table is not exhaustive. Both platforms offer additional diagram types, in particular PlantUML which offers several. I just don’t care about whatever a ‘Ditaa diagram’ is.

Why §

So, the concept is easy enough to comprehend; but what may be less clear is why you’d want to use code to produce diagrams in the first place. There are several great reasons, including one that you may not believe¹.

Diagrams are Necessary §

Most of us can grasp pictures faster than we can read. Images are a shortcut to understanding. The allow us to process with both the deep thinking and the visiospatial reasoning pars of our brains. You can use dual channels to process, and therefore get from where you are to understanding faster.

Diagrams are also more engaging than simple text. You probably saw that below before you read it up here.

pie
title Engagement by Media Type
"Diagrams" : 386
"Text" : 85

It’s Faster to Code than it is to Draw §

With even a modest amount of learning and practice, it is possible to produce well-formed, neatly drawn graphs and diagrams using a keyboard FASTER than you’d be able to do on a whiteboard. Moreover, you can make great, sweeping changes to a diagram, fundamentally changing the position of all its elements in some cases just by changing a single character, whereas on a whiteboard you’re erasing and re-drawing.

Of course there are always going to be certain things that are infinitely easier to do with a pen and paper than with a keyboard. If your diagram doesn’t fall neatly into one of the categories for which there exist code-based diagramming solutions, well then you’re going to need to bust out a pen and paper.

Versioning §

When your diagrams are produced dynamically based on some declarative code, you have access to all of the same tools that you use to manage the rest of your code. You can commit and push changes to GitHub, or your favorite version control system. You can quickly jump around to different versions of different diagrams.

Storage & Transmission §

Text takes up less space than .PNGs. Text-based diagrams can also be deconstructed and transmitted via any medium that only allows for text transmission. You could feasibly send a diagram over Morse Code². Even text-based image storage formats like SVG are probably longer than the code it takes to produce them.

Colocation §

This is the real reason diagrams as code has ever received any attention. The real ace in the hole. They can just live alongside - or even inside - the code they represent. There’s nothing more convenient than using the tool you’re already using to produce a wholly new variety of helpful thing.

How §

Okay, so we know what they are, and maybe we’re sold on why we want them… but how do we get them?

Deployment §

Both PlantUML and Mermaid offer online diagram generators. Currently Mermaid’s is by far and away better than PlantUMLs by any metric.

Online FlowChart & Diagrams Editor - Mermaid Live Editor

PlantUML Web Server

A major difference between the two platforms is that PlantUML expects to be installed locally and used to create diagrams that are saved locally, whereas Mermaid expects you’ll be using it in the browser to render graphs to a webpage.

Installing PlantUML involves downloading & installing:

1. Java
2. Graphviz (which handles layouts)
3. PlantUML

Interestingly it looks like PlantUML is also available via NPM - it’s just not officially supported.

Mermaid’s intended application is via inclusion as a script tag using a CDN, or through local install using NPM… both of which are much easier. You could simply copy/paste the below into a text file on your computer, save it with a ‘.html’ suffix, then open it in your browser to see your diagram.

<html>
  <script src="<https://cdn.jsdelivr.net/npm/mermaid/dist/mermaid.min.js>"></script>
  <body>
    Here is a mermaid diagram:
    <div class="mermaid">
      graph TD
        A[Client] --> B[Load Balancer]
        B --> C[Server01]
        B --> D[Server02]
    </div>
    <script>
      mermaid.initialize({ startOnLoad: true });
    </script>
  </body>
</html>

Both Mermaid and PlantUML enjoy wide application support. You can utilize them to create diagrams with minimal configuration (and sometimes no configuration) in the following environments³ :

Platform	PlantUML	Mermaid
Notion		✅ - Native Support
Open Office	✅
Confluence	✅	✅
GitLab	✅	✅ - Native Support
GitHub		GitHub pledged native support “soon”
GitBucket	✅
VS Code	✅	✅
Atom	✅	✅
Eclipse	✅
IntelliJ IDEA	✅
VIM	✅	✅
Sphinx	✅	✅
TypeDoc	✅	✅
…many more

PlantUML is more widely supported, but Mermaid is quickly catching up and has some high-profile applications with native support. See Mermaid’s list and PlantUMLs list.

Comparing Inputs vs Outputs §

Syntactically they aren’t that different, but when they do differ, PlantUML is more descriptive whereas Mermaid is more graphically representative. In terms of output, Mermaid diagrams tend to be “prettier” to my eye, but PlantUML tends to produce clearer diagrams with more contrast.

Here are a few of my favorite diagram types, depicting of bite-sized examples of the input syntax and output graphics for your consideration. These were created using the online tools found on each of their respective home pages (Mermaid.live and http://www.plantuml.com/plantuml/uml).

These diagram depict different aspects of my Personal Data Warehouse (PDW) project.

Class Diagram §

The next iteration of the PDW I’m working on right now uses an NPM package I authored. This describes that package. The PDW Class Diagram itself is too big to use as a ‘bite sized example’.

classDiagram
class HTMLElement
class Wrapper{
  +HTMLElement element
  +[Observer|Wrapper] subscribers
  text(string)
  value(string|number|boolean)
  style(string)
  data(string, string)
  newWrap()
  onEvent(string, function)
  bindTo(Observable)
  handleChange(string|number|boolean)
  addSubscriber(Observer)
  notifySubscribers(string|number|boolean)
}
Wrapper "1" *-- "1" HTMLElement : Wraps v
class Observable{
  -value
  +subscribers
  +getVal()
  +setVal()
  +addSubscriber(Observer)
  -notifySubscribers(string|number|boolean)
}
class WrappedInputLabelPair{
  +container: HTMLDivElement
  +label: Wrapper
  +input: Wrapper
}
WrappedInputLabelPair --|> Wrapper : Extends
class Observer{
  handleChange(string|number|boolean)
}
Wrapper -- Observable : < Bindable To
Observer -- Observable : Bindable To v
Observer -- Wrapper : Bindable To >

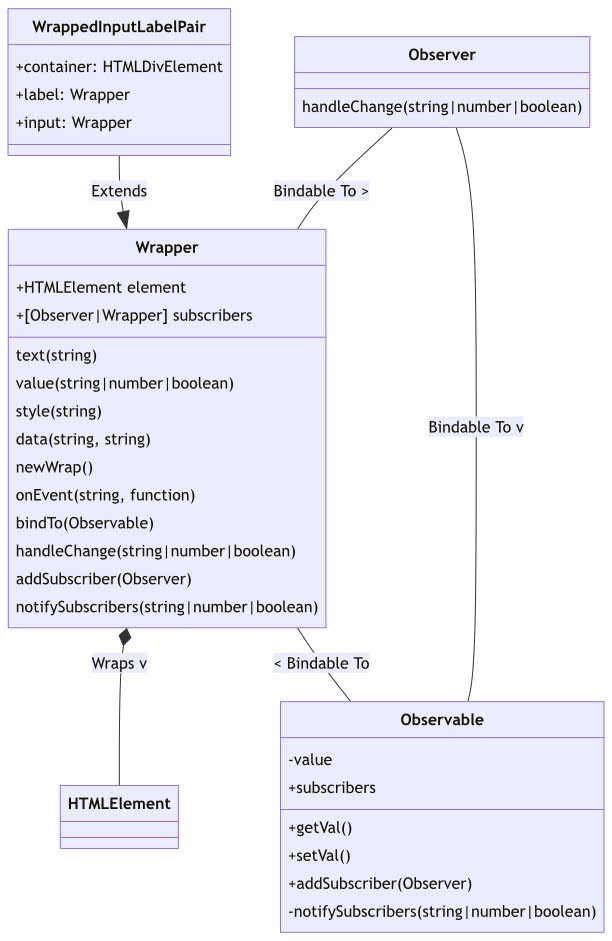

Mermaid code ⬆️ yields Mermaid diagram ⬇️

@startuml
class HTMLElement
class Wrapper{
  +HTMLElement element
  +[Observer|Wrapper] subscribers
  --Getters and Setters--
  text(string)
  value(string|number|boolean)
  style(string)
  data(string, string)
  --Utilities--
  newWrap()
  onEvent(string, function)
  bindTo(Observable)
  handleChange(string|number|boolean)
  addSubscriber(Observer)
  notifySubscribers(string|number|boolean)
}
Wrapper "1" *-- "1" HTMLElement : Wraps >
class Observable{
  -value
  +subscribers
  +getVal()
  +setVal()
  +addSubscriber(Observer)
  -notifySubscribers(string|number|boolean)
}
class WrappedInputLabelPair{
  +container: HTMLDivElement
  +label: Wrapper
  +input: Wrapper
}
WrappedInputLabelPair --|> Wrapper : Extends
class Observer{
  handleChange(string|number|boolean)
}
Wrapper -- Observable : Bindable To >
Observer -- Observable : Bindable To >
Observer -- Wrapper : Bindable To >
@enduml

PlantUML code ⬆️ yields PlantUML diagram ⬇️

Sequence Diagram §

How the PDW operates when I send it queries. Interestingly, both diagrams were made using literally the exact same text.

sequenceDiagram
    autonumber
    participant dbHost
    participant apiHost
    actor client
    Note over client: Search for Entries
    client-->>apiHost: query string
    apiHost-->apiHost: parse request
    alt is invalid
    apiHost-->client: bad query
    else is valid
    apiHost-->>dbHost: translated query
    dbHost-->dbHost: fetch results
    dbHost-->>apiHost: raw data
    apiHost-->apiHost: perform shaping
    apiHost-->>client: results
    end

Mermaid code ⬆️ yields Mermaid diagram ⬇️

@startuml
    autonumber
    participant dbHost
    participant apiHost
    actor client
    Note over client: Search for Entries
    client-->>apiHost: query string
    apiHost-->apiHost: parse request
    alt is invalid
    apiHost-->client: bad query
    else is valid
    apiHost-->>dbHost: translated query
    dbHost-->dbHost: fetch results
    dbHost-->>apiHost: raw data
    apiHost-->apiHost: perform shaping
    apiHost-->>client: results
    end
@enduml

PlantUML code ⬆️ yields PlantUML diagram ⬇️

Flow Chart/Activity Chart §

This flow chart describes the overall trajectory of the PDW Project. Flowcharts are where the syntax and what’s possible gets verydifferent between the two platforms

graph TD
a(Spreadsheets)
b(Spreadsheets & Webapp with JavaScript)
subgraph "Where I've been for 1.5 Years"
c(MongoDB & Glitch with JavaScript)
end
d(Firestore & Firebase with TypeScript)
e(Firestore & Firebase with TypeScript & various frameworks)
f(SQL & Python)
g(iPhone/iPad)
a-->b-->c-->d-->e-->f-->g
style c fill:#bbf

Mermaid code ⬆️ yields Mermaid diagram ⬇️

@startuml
:Spreadsheets;
:Spreadsheets & Webapp with JavaScript;
#lightblue:MongoDB & Glitch with JavaScript;
floating note left: Where I've been for 1.5 years
:Firestore & Firebase with **TypeScript**;
:Firestore & Firebase with **TypeScript** & various frameworks;
:SQL & Python;
:iPhone/iPad;
@enduml

PlantUML code ⬆️ yields PlantUML diagram ⬇️

How to Choose Between PlantUML and Mermaid §

Coke or Pepsi. McDonald’s or Burger King. Apple or Google. Team Edward or Team Jacob.

How do you choose?

Specific diagram type or feature coverage §

PlantUML covers more of the UML Core Diagrams. Mermaid offers Requirement diagrams (from SysML). If you absolutely need to make Activity Diagrams, PlantUML is your only choice.

Mermaid takes a more lean approach when it comes to adding features. On the whole, PlantUML offers features (e.g. native “Notes” on diagrams, like the note on the last diagram above).

Ease-of-implementation in your environment §

Depending on where you want to use your diagrams, you shouldn’t fight what’s easiest. Check out the compatibility table here (which I probably won’t maintain over time).

Syntactic Preferences §

One diagramming method may be your preferred syntax. Sequence diagrams are (or at least can be) the same syntax for both, but they take very different approaches for things like simple flowcharts. Mermaid’s syntax feels less daunting to me. Mermaid code blocks are practically readable by themselves. PlantUML is a bit less intuitive, from my perspective.

Stylistic Preferences §

Lastly, you might just prefer one the look of platform’s diagrams over the other. Going into this article I heavily favored Mermaid. Now I’m firmly on the fence. PlantUML diagrams are less “aesthetic”, but perhaps this makes them more readable. The bolder, higher contrast default for PlantUML looks a bit clunkier, but also easier to parse.

Some use cases I like Mermaid, some I like PlantUML…

…What we need is a third diagramming platform that covers both their use cases!

Post Script: SysML 2.0 §

Just so I can point to this at some time in the future and say “see, I was right”, I think that SysML 2.0 has the potential to completely upend this whole domain. Unlike any v1.x version of SysML, SysML 2.0 will have a graphical AND textual language. And you’ll be able to transition between them in both directions. That means SysML will be both diagrams as code, and code as diagrams… and that the diagrams will be interconnected as part of an underlying model representing a cohesive whole. The elements within your sequence diagrams are semantically linked to the classes in your class diagram. And you’ll be able to transition from either of those diagrams into the State Machine diagram that defines how instances of those things may exist. I imagine, also, that you’ll be able to natively execute system simulations using the model. It will an absolute beast compared to either of the platforms I focused on in this article.
